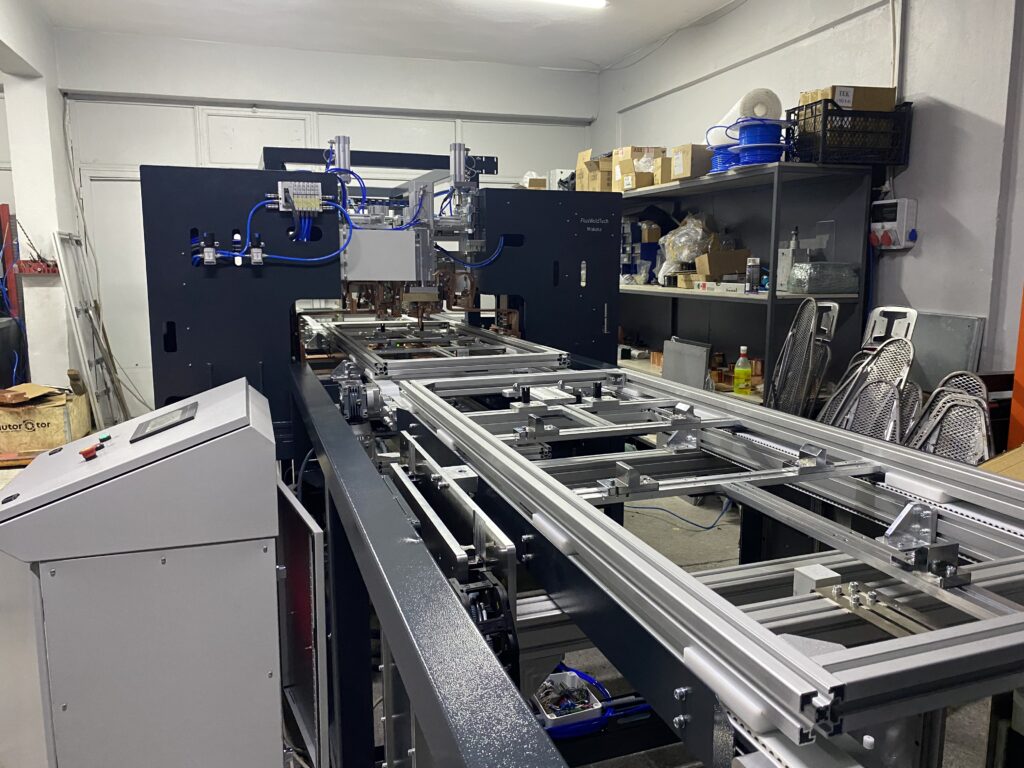

AUTOMATIC IRONING BOARD PRODUCTION LINE
PlusWeldTech Automatic Ironing Board Production Line is a machine designed to perform welding operations efficiently and quickly in the ironing board manufacturing process.
Automatic Control System
Ergonomic Design
Simultaneous Welding
High Precision and Repeatability
3 Fixture Simultaneous Movement
Short Setup Time
Custom-Designed Gun
Automatic Welding and Automatic Unloading Feature
Automated Structure
The Automatic Ironing Board Production Line with these features is designed to provide high precision, reliability, and durability in welding operations.
As PlusWeldTech Machinery, we stand out with our machines designed to offer customized solutions to our customers and meet industrial needs.
We guarantee quality, precision, and durability.
Automatic Control System
The Automatic Ironing Board Production Line, with PLC (Programmable Logic Controller)-based communication and a specially developed Welding Card, allows for the separate management of parameters for steps and pistons. This enables the operator to easily program and control complex welding operations.
Ergonomic Design
The machine features a user-friendly and ergonomic design. It is carefully designed to ensure operators can work comfortably and easily use the machine.
Simultaneous Welding
The machine, with 60 KVA x 2 (2 Transformers), offers a faster and more powerful welding process thanks to its ability to perform simultaneous welding.
High Precision and Repeatability
The machine features sensor and control systems that operate with high precision according to European standards. This ensures consistency and repeatability at each welding point.

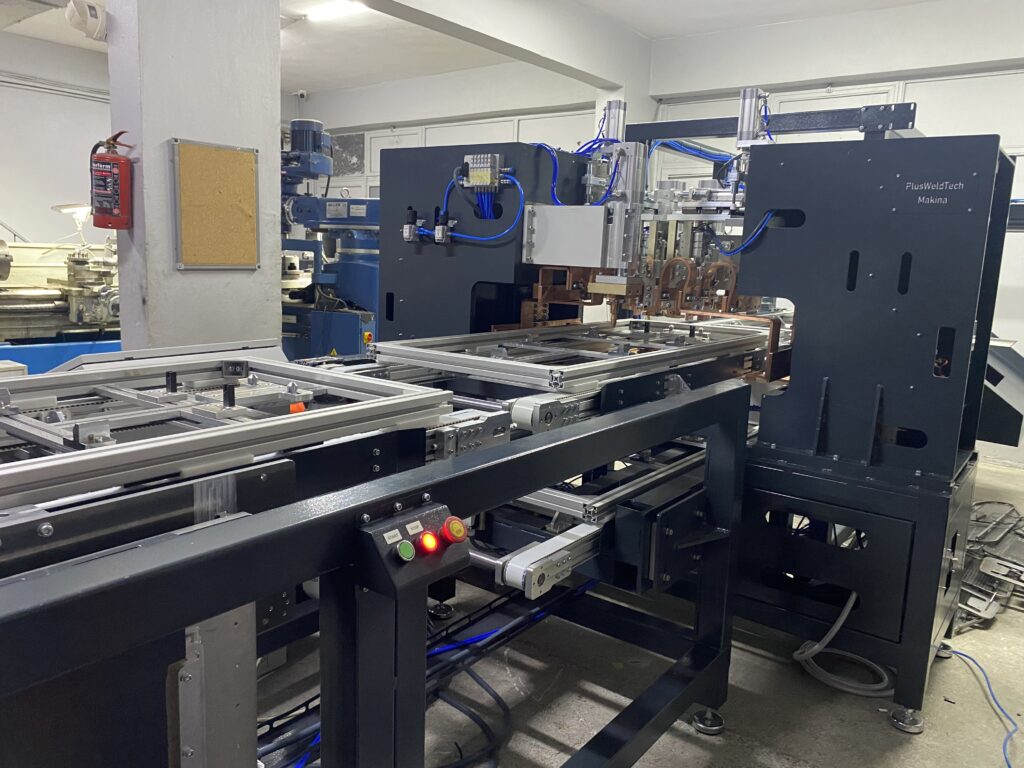

3 Fixture Simultaneous Movement
The machine, with its 3-fixture and simultaneous movement capability, has the ability to increase production capacity by three times faster.
Short Setup Time
The machine is designed for use in various industrial applications. With its short setup time, it enables the production of different products on the production line without any time loss.

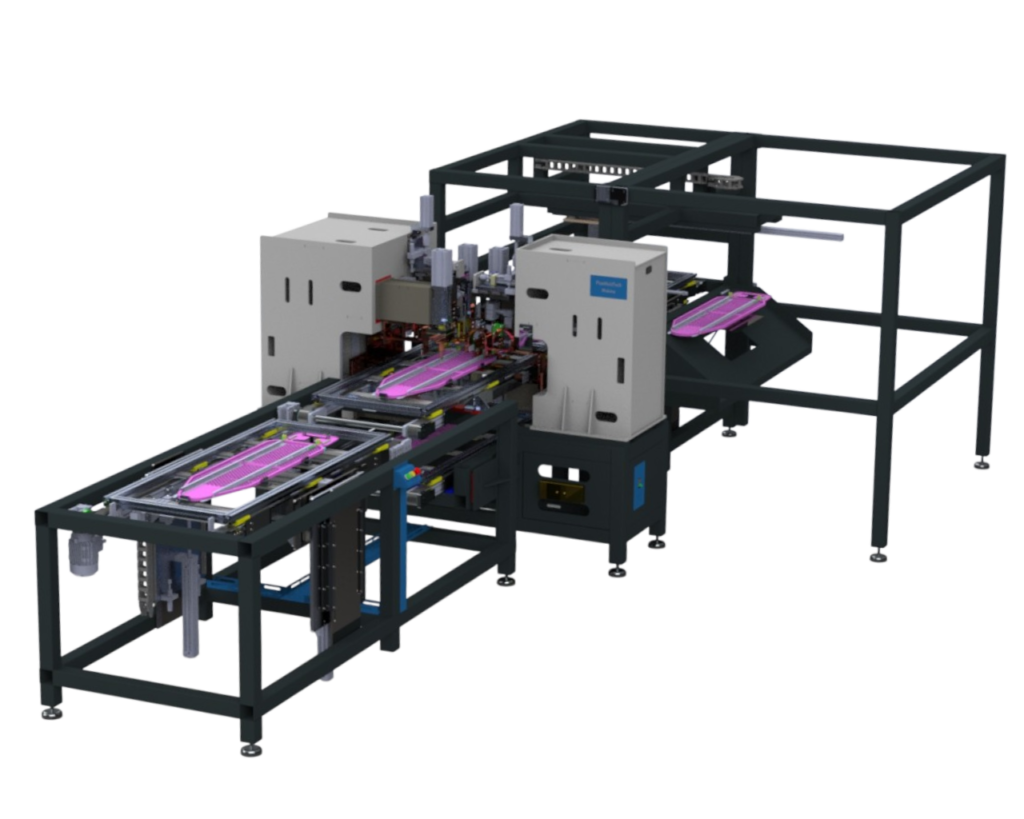

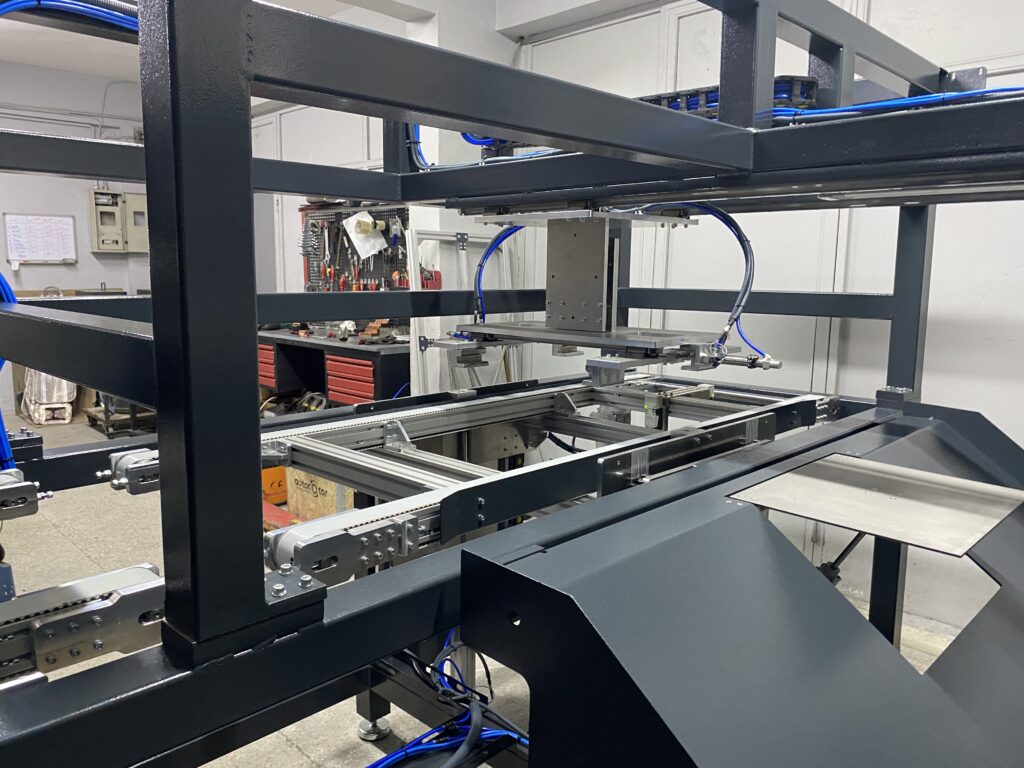

4 Conveyor and Elevator System
The machine, with its 4 conveyor and elevator system, allows the welding process to continue while the operator prepares new products. This enables production to be carried out without any waiting time during welding operations.

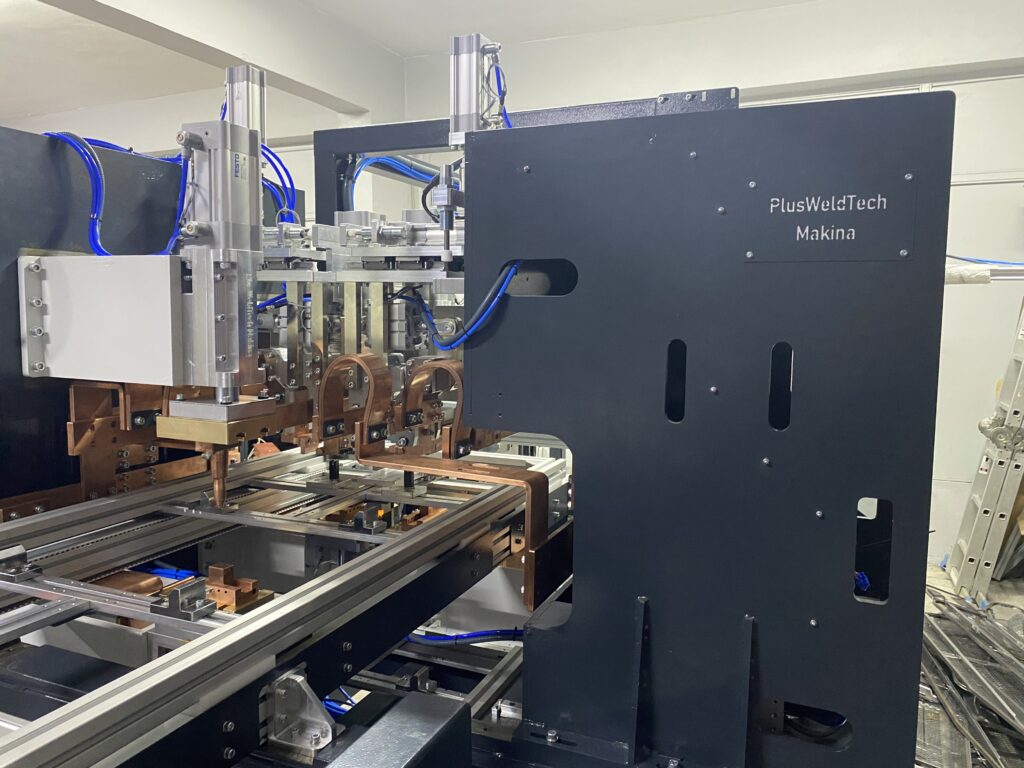

Custom-Designed Gun
The machine, thanks to its custom-designed gun, has the ability to perform cross movements.
Automatic Welding and Automatic Unloading Feature
The machine, with its automatic welding and automatic unloading features, provides a safe welding process while automatically unloading the finished product without the need for additional personnel.
High Efficiency and Speed
The Automatic Ironing Board Production Line offers a fast and efficient welding process. This increases your production speed and optimizes work efficiency.
Automated Structure
The machine, with its automated structure, provides a safe and high-quality production process.
| Code | PWT-UM120 |
| Product | AUTOMATIC IRONING BOARD PRODUCTION LINE |
| Specifications | |
| Rated Power (%50 DT) | 60 KVA |
| Arm Length | 1000 mm – 1500mm |
| Stroke | 75 mm |
| Piston Diameter | Ø80×5 |
| Air Pressure | 2 / 8 bar |
| Electrode Pressing Force | 4800N |
| Cooling Water Inlet Temperature (min – max) | 15-30 °C |
| Cooling Water Inlet Flow Rate (min) | 10 – 15 lt / dkk(min) |
| Transformer Cooling Type | Water Cooling |
| Dimensions (LWH) mm | 6500x4000x2250 |
| Machine Power Supply Voltage | 400V – 50/60Hz 2 Faz(Pole) |
| Delayed Network Fuse | 225 A |
