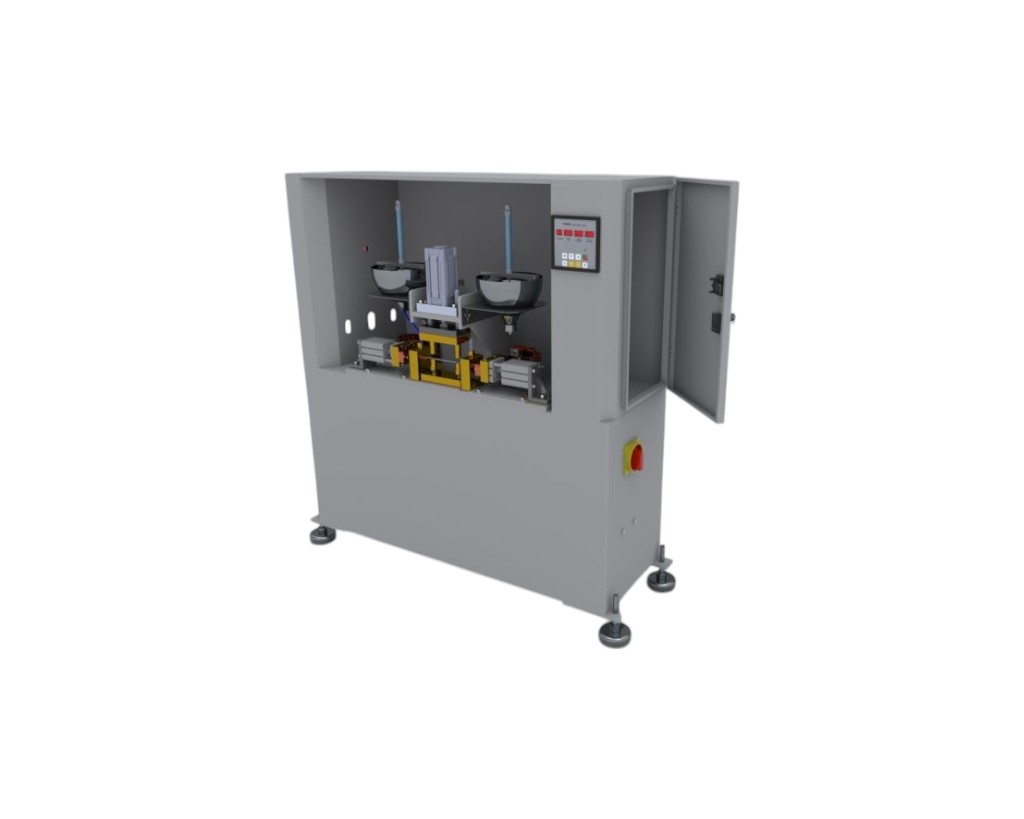

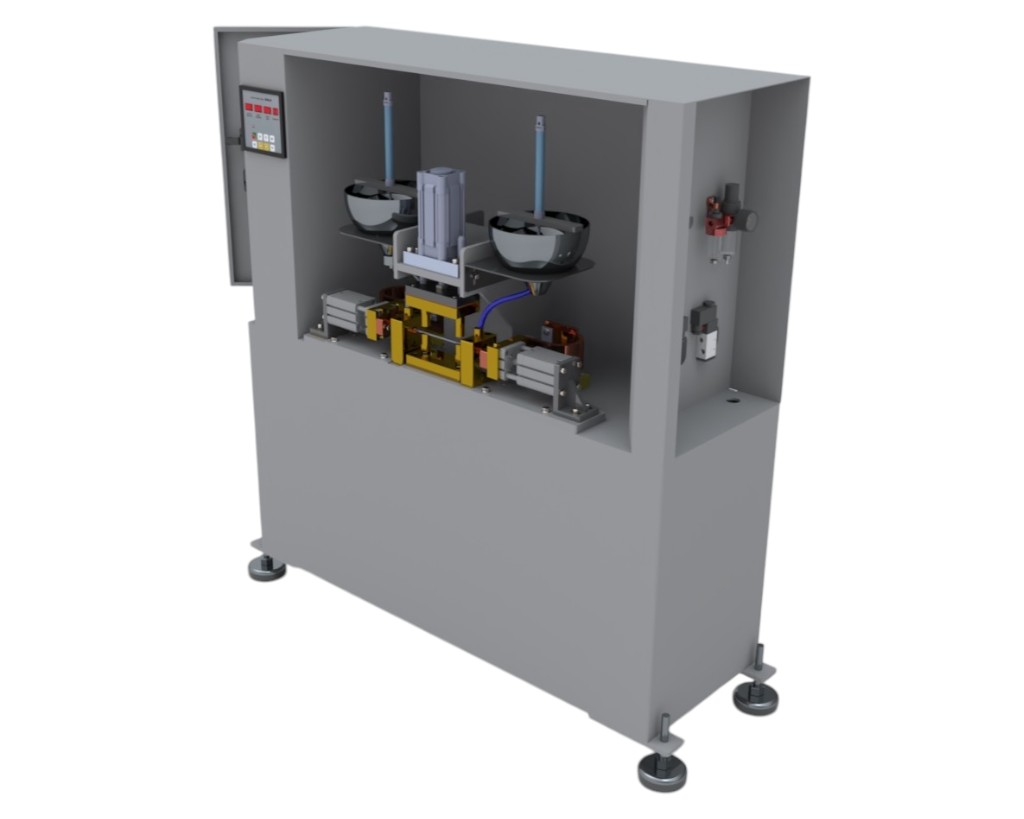

STEEL BALL WELDING MACHINE
PlusWeldTech Steel Ball Welding Machine is designed to effectively carry out spot welding processes of products in industrial production processes.
Microprocessor Based Control
Water Cooled Electrode
Reinforced Bearing Piston
Adjustable Front Section
With these features, the Steel Ball Welding Machine is designed to provide high precision, reliability, and durability in steel ball spot welding processes.
At PlusWeldTech Machinery, we stand out by offering custom solutions and machines designed to meet industrial needs.
We guarantee Quality, Precision and Durability.
Microprocessor Based Control System
The Steel Ball Welding Machine is equipped with an advanced microprocessor control system. This allows precise management of the welding processes and enables repeatable results.
Water Cooled Electrode
The machine’s electrodes are water-cooled, ensuring optimal temperature control during long and intensive usage. This feature enhances the durability of the machine and supports continuous production.
Reinforced Bearing Piston
The Steel Ball Welding Machine incorporates reinforced bearing piston technology. These pistons provide high durability and strong welding performance.
Adjustable Front Section
The front section of the Steel Ball Welding Machine is adjustable. This provides flexibility when working with steel balls of various sizes or types.
| Code | PWT-MK60 |
| Product | STEEL BALL WELDING MACHINE |
| Specifications | |
| Rated Power (%50DT) | 60 KVA |
| Wire Gap | Adjustable |
| Stroke | 50 mm |
| Piston Diameter | Ø50 mm |
| Air Pressure | 2 / 8 bar |
| Electrode Pressure Force | 1200N-1500N |
| Cooling Water Inlet Temperature (min- max) | 15-30 °C |
| Cooling Water Inlet Flow Rate (min) | 8 – 10 lt / dkk(min) |
| Transformer Cooling Type | Air /Water |
| Dimensions (LWH) | 640x940x1560 |
| Machine Power Supply Voltage | 400V – 50/60Hz 2 Phase (Pole) |
| Delayed Network Fuse | 125 A |
