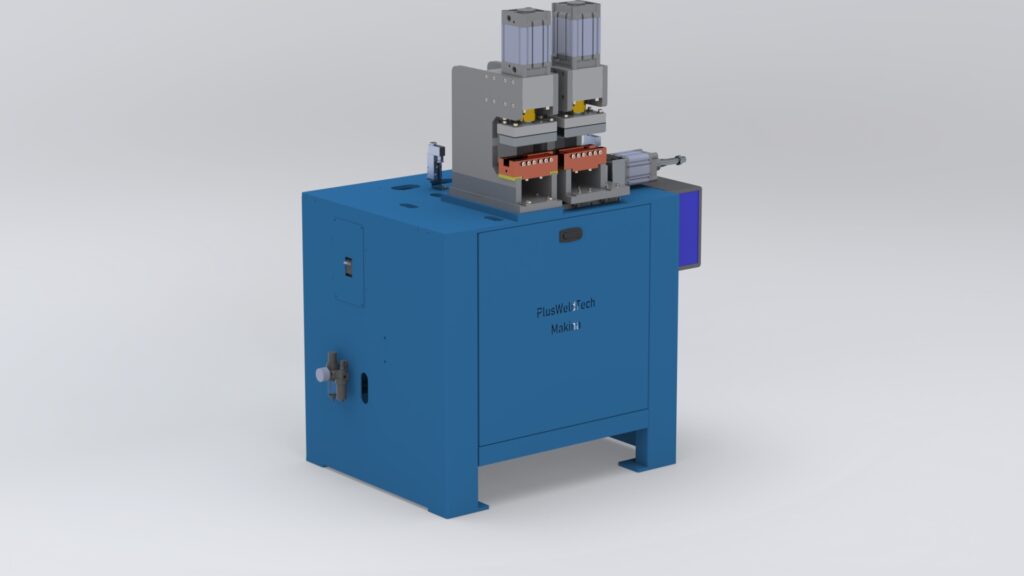

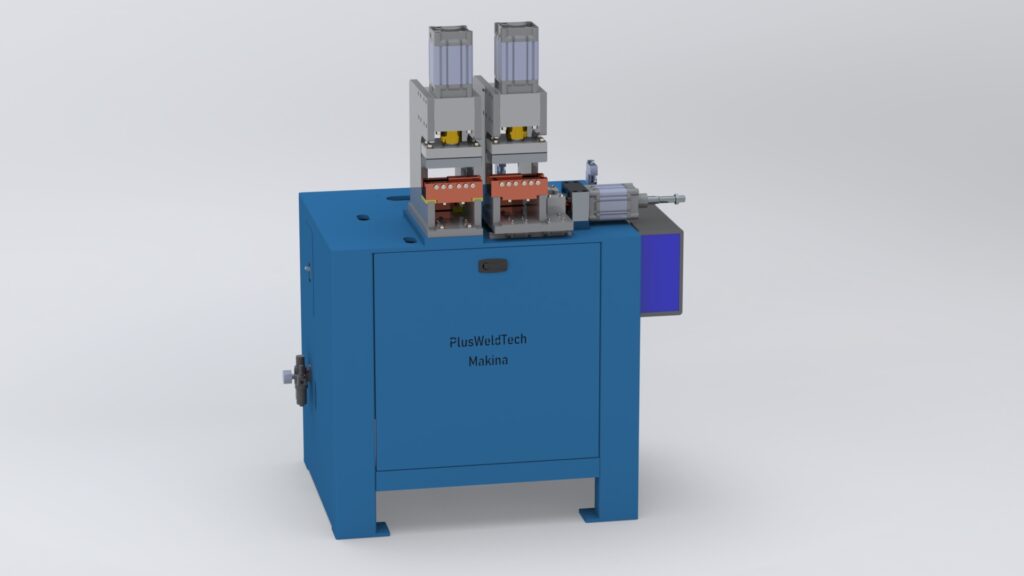

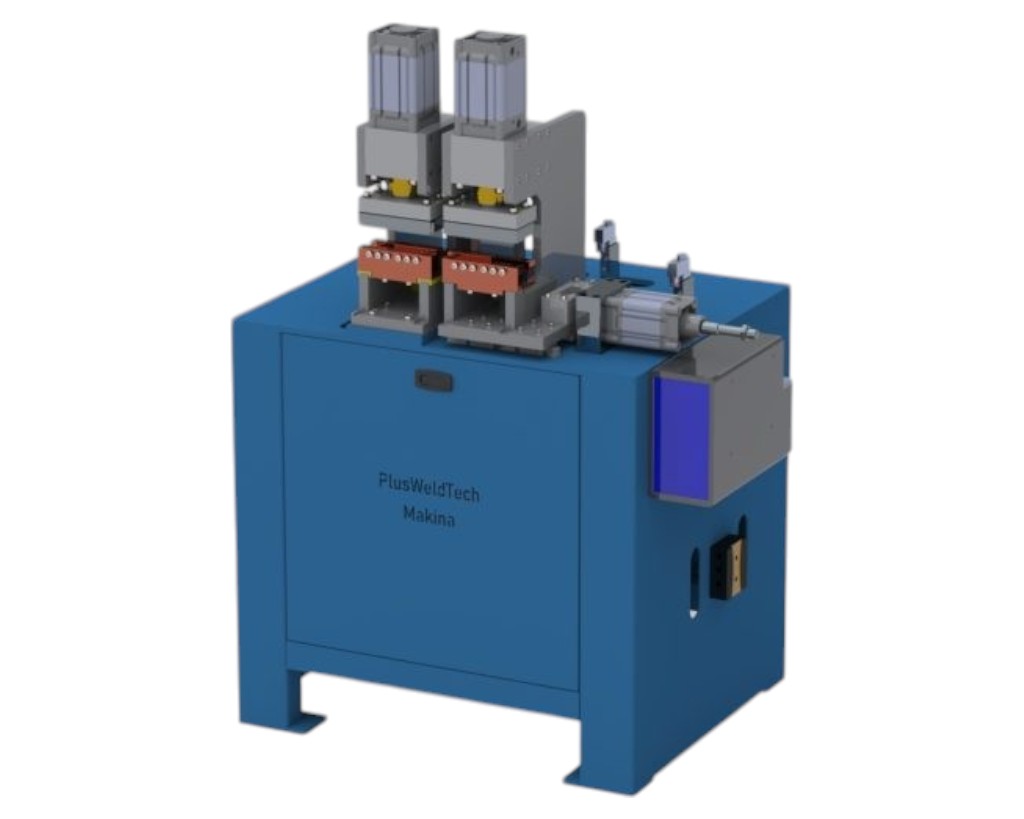

HEAVY-DUTY BUTT WELDING MACHINE
PlusWeldTech Heavy-Duty Butt Welding Machine is designed to perform butt welding processes effectively in industrial production operations.
Microprocessor Control
Water Cooled Electrodes
Slide Carriage
Height Adjustment
Embedding Depth Adjustment
Reinforced Bearing Pistons
Adjustable Distance Between Pistons
This Heavy-Duty Butt Welding Machine. Equipped with these features. Is designed to provide high precision. Reliability. And durability in butt welding processes. At PlusWeldTech, we stand out with our machines tailored to meet industrial needs. And offer customized solutions to our customers.
We provide assurance in terms of Quality, Precision, and Durability.
Microprocessor Control System
The Heavy-Duty Butt Welding Machine features an advanced microprocessor control system. This system manages welding processes with precision, ensuring consistent and reliable results.
Water Cooled Electrodes
The electrodes of the Heavy-Duty Butt Welding Machine are water-cooled, providing optimal temperature control during prolonged and intensive use. This feature enhances the machine’s durability and supports uninterrupted production.
Reinforced Bearing Pistons
The Heavy-Duty Butt Welding Machine incorporates reinforced bearing piston technology. These pistons deliver exceptional durability and powerful welding performance.
Adjustable Distance Between Pistons
The Heavy-Duty Butt Welding Machine allows the adjustment of the distance between pistons. This feature offers flexibility to accommodate products of varying sizes and dimensions.
| Code | PWT-AAKM30 |
| Product | HEAVY-DUTY BUTT WELDING MACHINE |
| Specifications | |
| Nominal Power (%50DT) | 30 KVA |
| Arm Length | 30mm |
| Stroke | 50mm |
| Piston Diameter | Ø83 mm |
| Air Pressure | 2 / 8 bar |
| Electrode Force | 3700N |
| Cooling Water Inlet Temperature (min-max) | 15-30 °C |
| Cooling Water Inlet Flow Rate (min) | 8 – 10lt / dkk(Min) |
| Transformer Cooling Type | Air/Water |
| Dimensions (WLH) | 750X650X1300mm |
| Machine Supply Voltage | 400V – 50/60Hz 2 Phase |
| Delayed Mains Fuse | 63 A |
