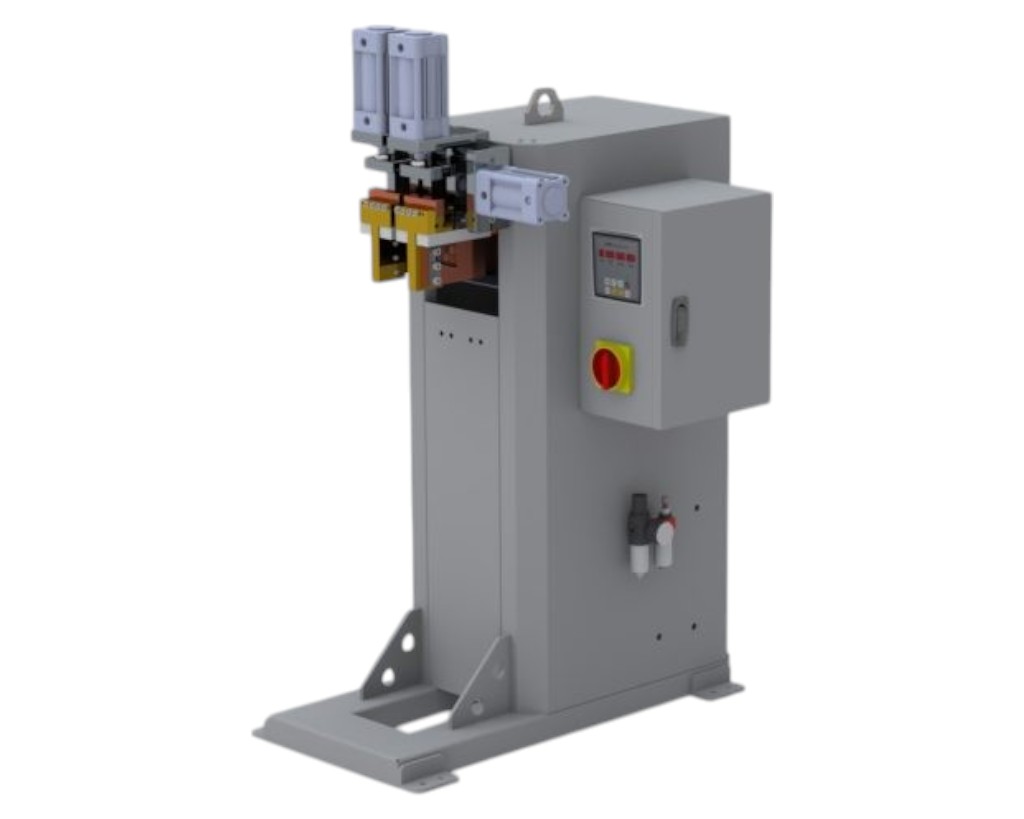

PNEUMATIC BUTT WELDING MACHINE
PlusWeldTech Pneumatic Butt Welding Machine is designed to efficiently perform butt welding operations in industrial production processes.
Microprocessor Controlled System
Water Cooled Arm
Reinforced Bearing Piston
Equipped with these features, the Pneumatic Butt Welding Machine ensures high precision, reliability, and durability in welding applications.
At PlusWeldTech, we excel in delivering customized solutions and machines tailored to meet industrial needs.
We guarantee Quality, Precision, and Durability.
Microprocessor Controlled System
The Pneumatic Butt Welding Machine features an advanced microprocessor control system. This system ensures precise management of welding operations, delivering consistent and stable results.
Water Cooled Electrodes
The machine’s electrodes are water-cooled. This feature provides optimal temperature control during prolonged and intensive use, enhancing the machine’s durability and supporting uninterrupted production.
Reinforced Bearing Piston
The Pneumatic Butt Welding Machine is equipped with reinforced bearing piston technology, offering high durability and powerful welding performance.
| Code | PWT-AKM30 |
| Product | PNEUMATIC BUTT WELDING MACHINE |
| Specifications | |
| Rated Power (%50DT) | 30 KVA |
| Welding Stroke | 30mm |
| Jaw Stroke | 50mm |
| Piston Diameter | Ø63 mm |
| Air Pressure | 2 / 8 bar |
| Electrode Clamping Force | 2100N |
| Cooling Water Inlet Temperature (min-max) | 15-30 °C |
| Cooling Water Flow Rate (min) | 8 – 10lt / dkk(Min) |
| Transformer Cooling Type | Air/Water |
| Dimensions (WLH) | 550X650X1300mm |
| Machine Input Voltage | 400V – 50/60Hz 2 Phase |
| Delayed Network Fuse | 63 A |
