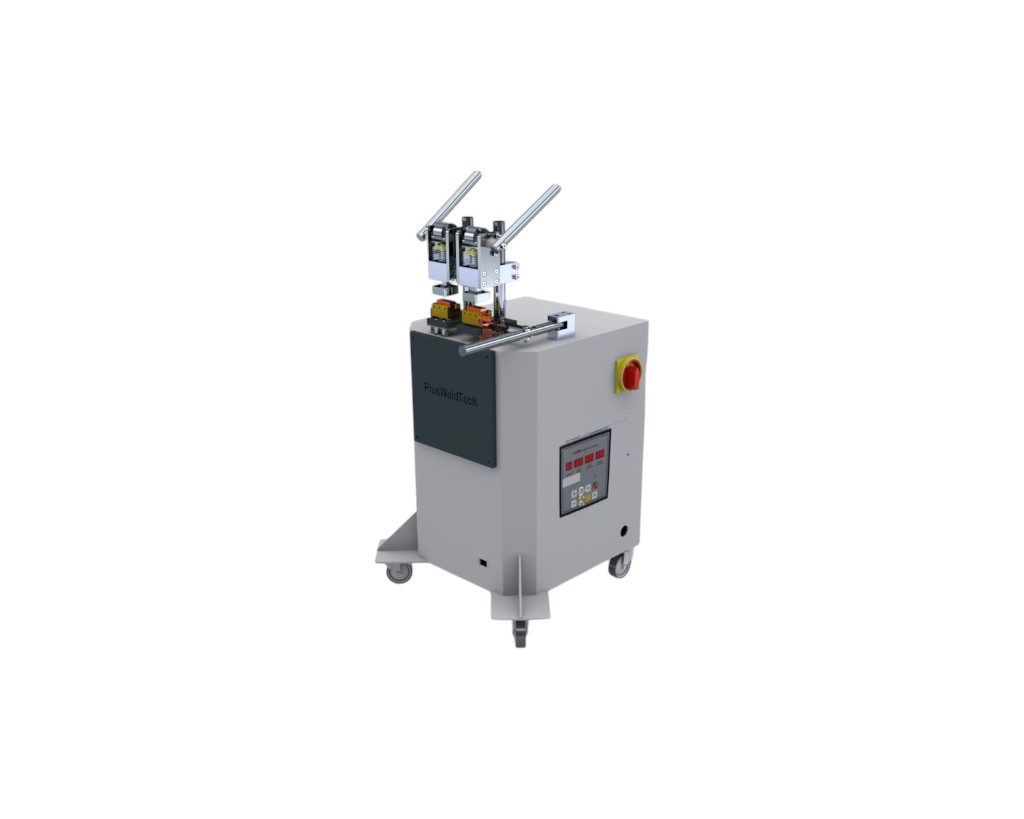

LOCK MANUAL SPOT WELDING MACHIN
PlusWeldTech Lock Manual Spot Welding Machine is designed to effectively perform spot welding operations in industrial production processes.
Microprocessor Controlled System
Water Cooled Electrodes
Reinforced Bearing Piston
Adjustable Bottom Section
With these features, the Lock Manual Spot Welding Machine is engineered to provide high precision, reliability, and durability in spot welding processes.
As PlusWeldTech Machinery, we stand out with our machines designed to offer customized solutions to our customers and meet industrial needs.
We provide assurance in terms of Quality, Precision and Durability.
Microprocessor Controlled System
The Lock Manual Spot Welding Machine is equipped with an advanced microprocessor-controlled system. This allows for precise management of seam welding operations and ensures repeatable results.
Water Cooled Electrodes
The machine’s electrodes are water-cooled. This feature ensures optimal temperature control during prolonged and intense use, enhances the machine’s durability, and supports continuous production.
Reinforced Bearing Piston
The Lock Manual Spot Welding Machine incorporates reinforced bearing piston technology. These pistons provide high durability and strong welding performance.
Adjustable Bottom Section
The bottom section of the machine is adjustable. This offers flexibility for different material thicknesses and seam welding requirements.
| Code | PWT-MKM120 |
| Product | LOCK MANUAL SPOT WELDING MACHINE |
| Specifications | |
| Rated Power (%50DT) | 120KVA |
| Arm Length | 500 mm – 1200mm |
| Stroke | 75 mm |
| Piston Diameter | Ø80×2 |
| Air Pressure | 2 / 8 bar |
| Electrode Pressing Force | 4800N |
| Cooling Water Inlet Temperature (min- max) | 15-30 °C |
| Cooling Water Flow Rate (min) | 10 – 15 lt / dkk(min) |
| Transformer Cooling Type | WATER COOLING |
| Dimensions (WDH) mm | 1000x1000x1750 |
| Machine Supply Voltage | 400V – 50/60Hz 2 PHASE(Pole) |
| Delayed Network Fuse | 225 A |
