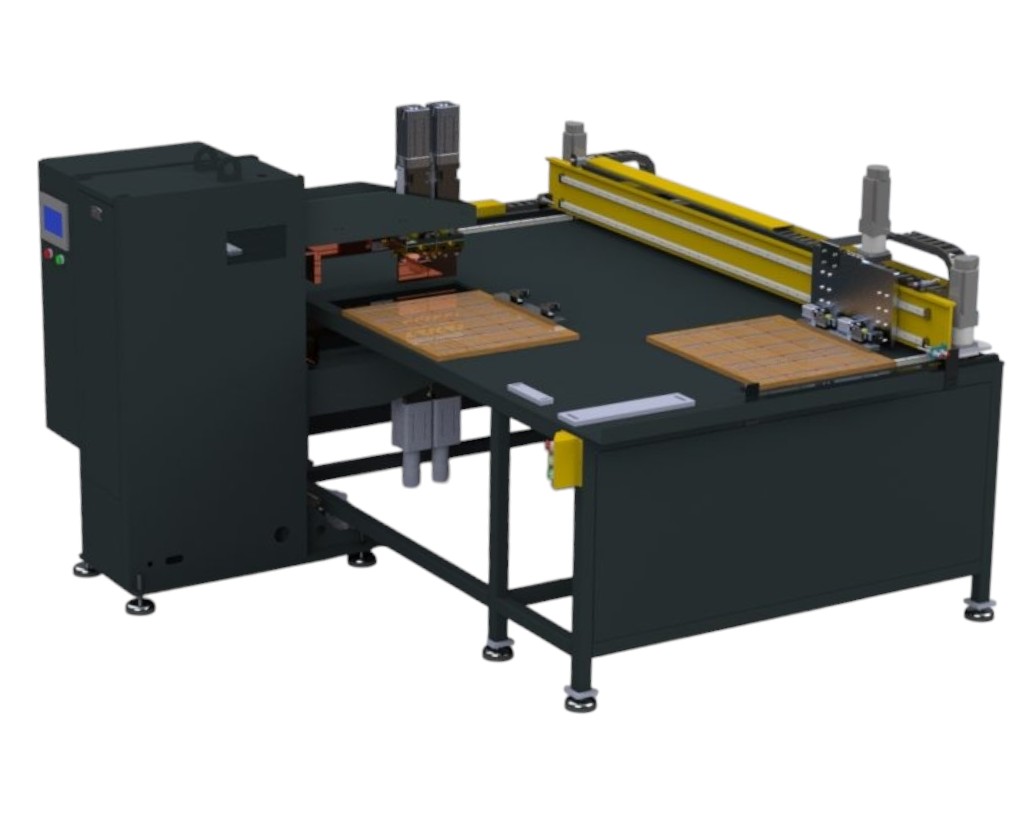

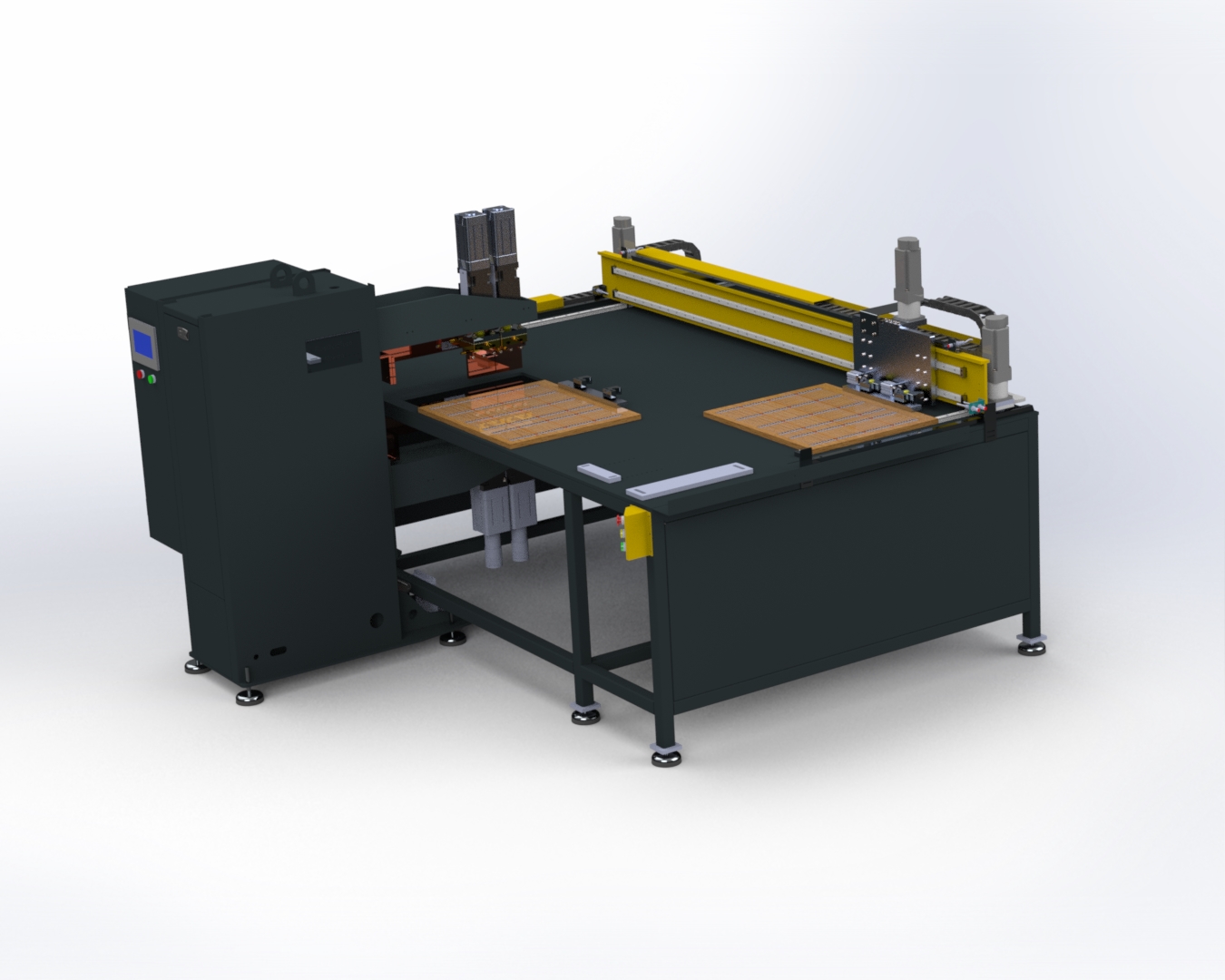

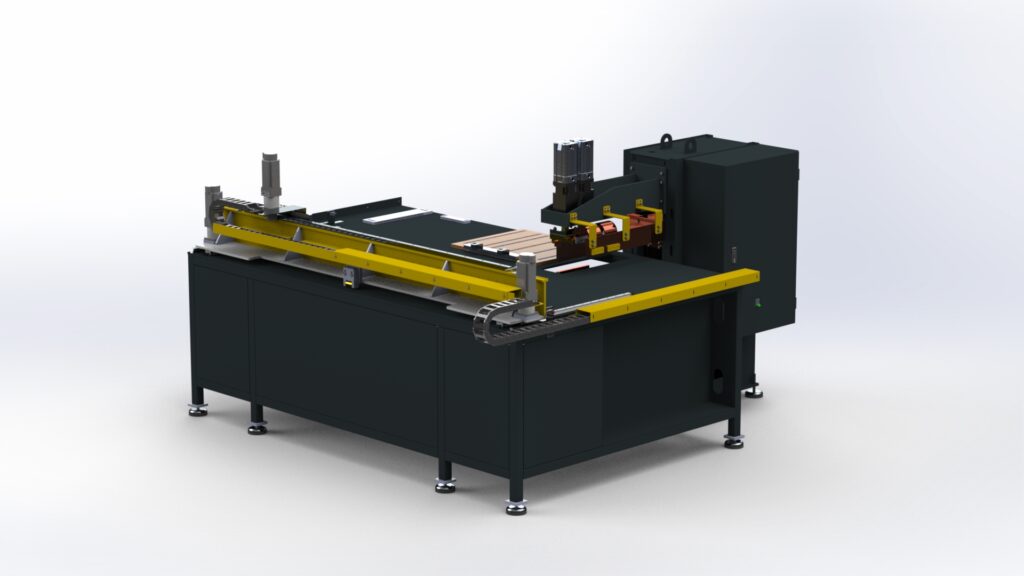

X-Y MOVABLE CNC SPOT WELDING MACHINE
As PlusWeldTech Machinery, we provide customized solutions to our clients and offer a machine designed to meet industrial needs.
CNC Based Automatic Spot Welding
Teach Mode System
PLC Controlled
Water Cooled System
Precise Welding Control
Fast and High-Quality Production Process
The X-Y Movement CNC Spot Welding Machine is an ideal option for making production processes more effective and efficient.
We guarantee quality, precision, and durability.
CNC Based Automatic Spot Welding
The X-Y Movement CNC Spot Welding Machine, being CNC-based, provides high precision and repeatability in welding processes. The automatic control system offers the operator a wide range of control and monitoring options.
Teach Mode System
The X-Y Movement CNC Spot Welding Machine features a Teach Mode system that allows operators to easily create programs. This enables the quick creation of custom welding programs for different workpieces, offering a flexible production process.
PLC Controlled Operation
The X-Y Movement CNC Spot Welding Machine operates with a PLC (Programmable Logic Controller)-controlled system. This allows for easy management of complex production processes, optimizing operations, and ensuring error-free results.
Water Cooled System
The X-Y Movement CNC Spot Welding Machine is equipped with a water-cooled system. This feature prevents overheating of the machine during prolonged and intensive use, thus increasing durability and supporting continuous production.
Precise Welding Control
The X-Y Movement CNC Spot Welding Machine stands out with precise welding control. Advanced sensors and control systems ensure consistency at every welding point and meet the desired quality standards.
Fast and High-Quality Production Process
The X-Y Movement CNC Spot Welding Machine enables fast and precise welding operations. This increases the efficiency of your production process while ensuring high-quality products.
| Code | PWT-CNX120 |
| Product | X-Y MOVEMENT CNC SPOT WELDING MACHINE |
| Specifications | |
| Rated Power (%50DT) | 120KVA |
| Arm Length | 500 mm – 1200mm |
| Stroke | 75 mm |
| Piston Diameter | Ø100 |
| Air Pressure | 2 / 8 bar |
| Electrode Pressure Force | 4800N |
| Cooling Water Inlet Temperature (min-max) | 15-30 °C |
| Cooling Water Inlet Flow Rate (min) | 10 – 15lt / dkk(min) |
| Transformer Cooling Type | Water Cooling |
| Dimensions (LWH) | 640x940x1560 |
| Machine Power Supply Voltage | 400V – 50/60Hz 2 Faz(Pole) |
| Gecikmeli Şebeke Sigortası | 225 A |
