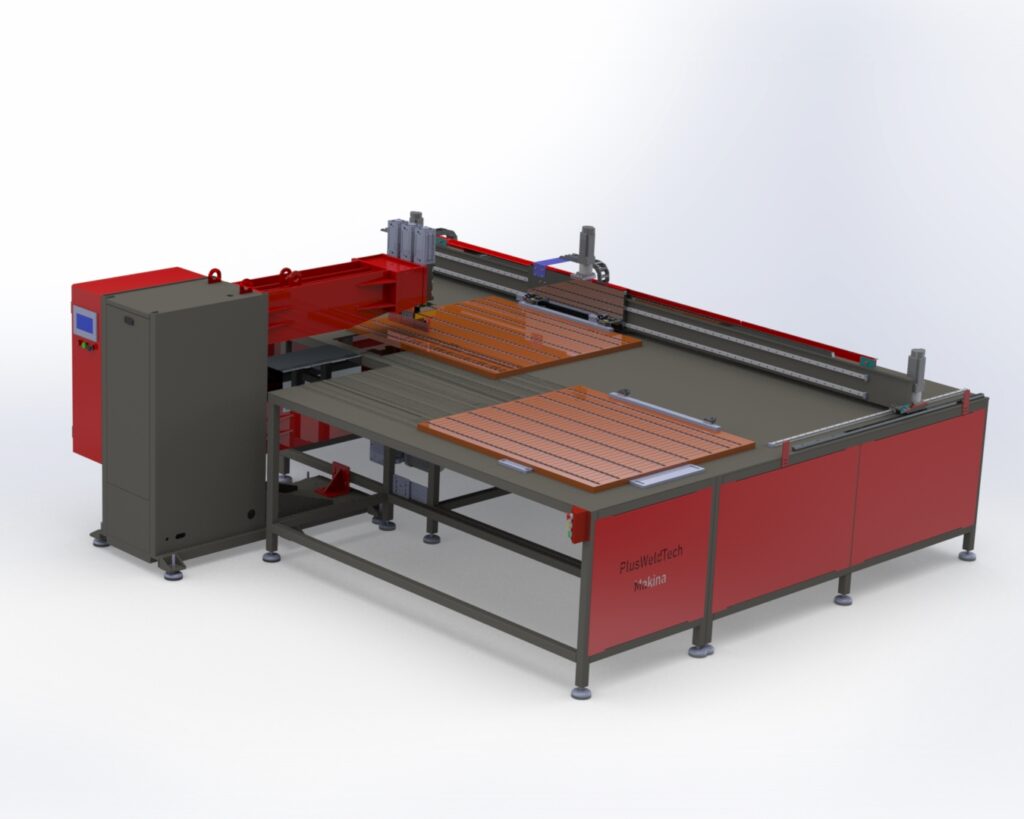

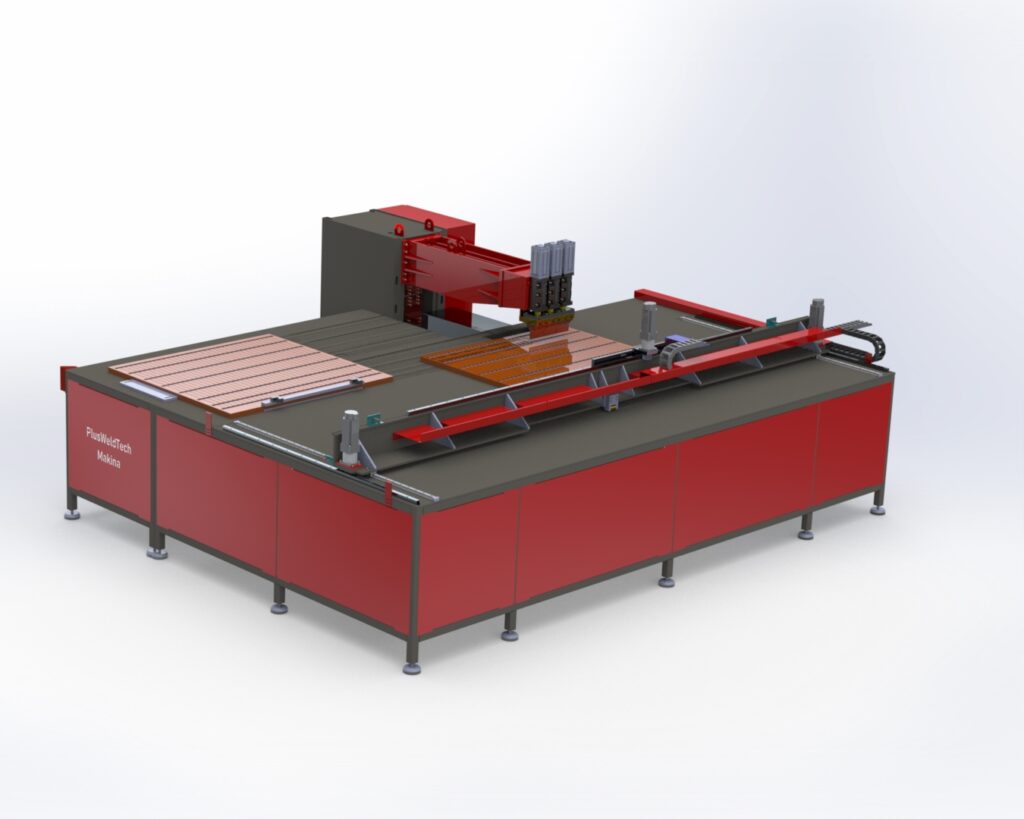

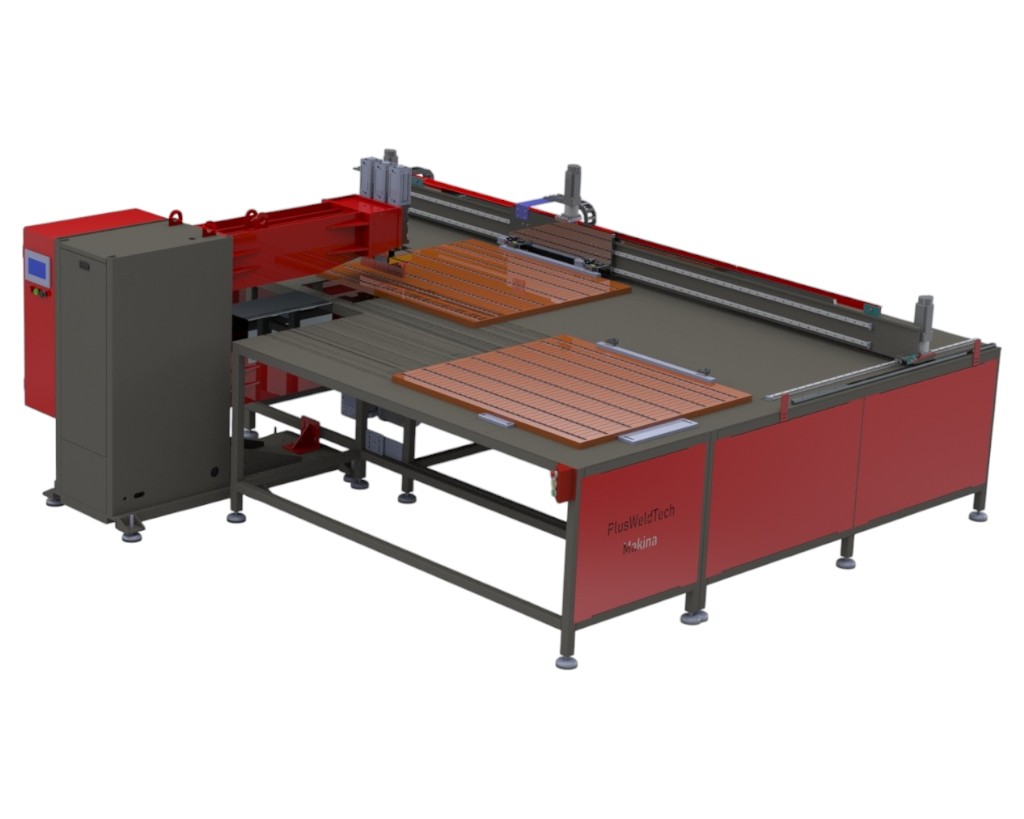

X-Y-Z MOVABLE CNC SPOT WELDING MACHINE
As PlusWeldTech Machinery, we offer customized solutions to our customers with machines designed to meet industrial needs.
CNC Based Automatic Spot Welding
Teaching Mode System
PLC Controlled
Water Cooled System
Precise Welding Control
Fast and High-Quality Production Process
The X-Y-Z Movable CNC Spot Welding Machine is an ideal option to make production processes more effective and efficient.
We guarantee quality, precision, and durability.
CNC Based Automatic Spot Welding
The X-Y-Z Movable CNC Spot Welding Machine, being CNC-based, provides high precision and repeatability in welding operations. The automatic control system offers the operator extensive control and monitoring capabilities.
Teaching Mode System
The X-Y-Z Movable CNC Spot Welding Machine, with its teaching mode feature, allows operators to easily create programs. This enables the rapid creation of custom welding programs for different workpieces, resulting in a flexible production process.
PLC Controlled Operation
The X-Y-Z Movable CNC Spot Welding Machine operates with a PLC (Programmable Logic Controller)-controlled system. This allows for easy management of complex production processes, optimization of operations, and the achievement of error-free results.
Water-Cooled System
The X-Y-Z Movable CNC Spot Welding Machine is equipped with a water-cooled system. This feature prevents the machines from overheating during prolonged and intense use, thereby enhancing durability and supporting continuous production.
Precise Welding Control
The X-Y-Z Movable CNC Spot Welding Machine stands out with its precise welding control. High-tech sensors and control systems ensure consistency at every welding point and meet the desired quality standards.
Fast and High-Quality Production Process
The X-Y-Z Movable CNC Spot Welding Machine enables fast and precise welding operations. This increases the efficiency of your production process while ensuring the production of high-quality products.
| Code | PWT-CNZ210 |
| Product | X-Y-Z MOVABLE CNC SPOT WELDING MACHINE |
| Specifications | |
| Rated Power (%50DT) | 210KVA |
| Arm Length | 500 mm – 1200mm |
| Stroke | 75 mm |
| Piston Diameter | Ø125 x 2 mm(Tandem) |
| Air Pressure | 2 / 8 bar |
| Electrode Pressing Force | 9000N-14000N |
| Cooling Water Inlet Temperature (min – max) | 15-30 °C |
| Cooling Water Inlet Flow Rate (min) | 10 – 15lt / dkk(min) |
| Transformer Cooling Type | Water Cooling |
| Dimensions (LWH) | 700x1150x1900mm |
| Machine Power Supply Voltage | 400V – 50/60Hz 2 Faz(Pole) |
| Delayed Network Fuse | 500 A |
