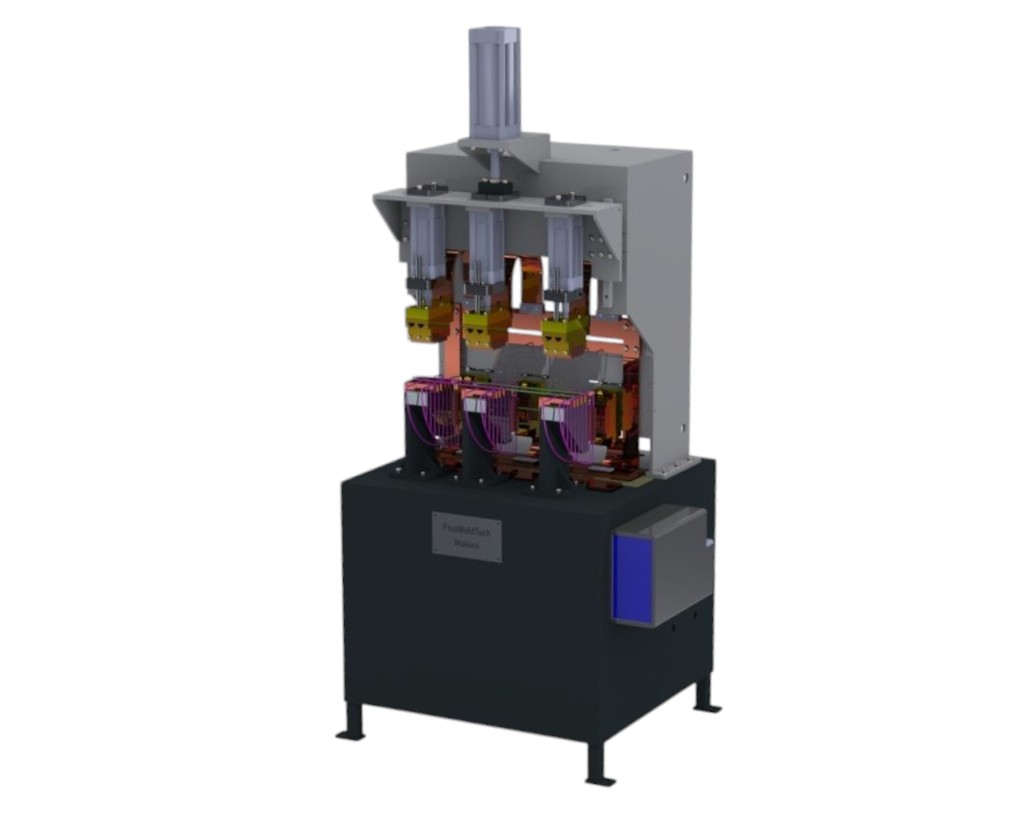

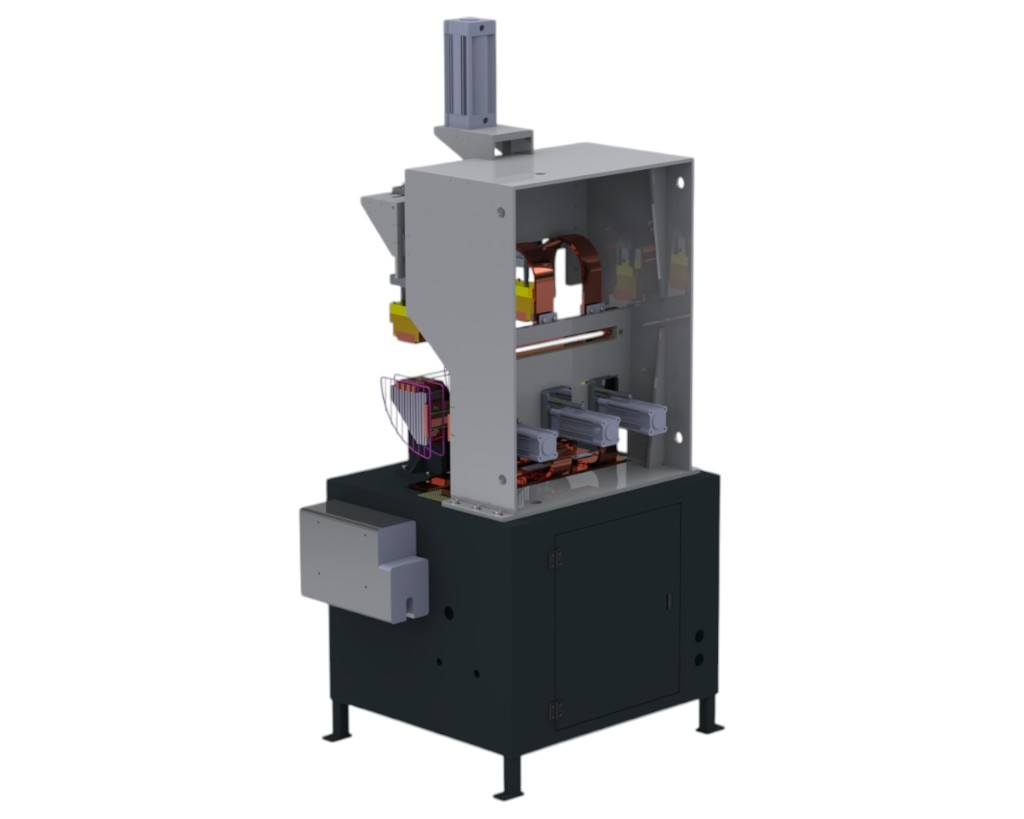

BATHROOM CORNER SPOT WELDING MACHINE
PlusWeldTech Bathroom Corner Spot Welding Machine is designed to efficiently perform spot welding operations on special products in industrial production processes.
Microprocessor Controlled
Water Cooled Electrode
Reinforced Bearing Piston
Adjustable Between Pistons
Equipped with these features, the Bathroom Corner Spot Welding Machine is designed to provide high precision, reliability, and durability in spot welding operations for specialized products.
As PlusWeldTech Machinery, we stand out with our machines designed to meet industrial needs and offer tailored solutions to our customers.
We provide assurance in Quality, Precision and Durability.
Microprocessor Controlled System
The Bathroom Corner Spot Welding Machine is equipped with an advanced microprocessor-controlled system, allowing for precise management of welding operations and ensuring repeatable results.
Water Cooled Electrode
The machine’s electrodes are water-cooled, providing optimal temperature control during extended and intensive use. This feature enhances the machine’s durability and supports continuous production.
Reinforced Bearing Piston
The Bathroom Corner Spot Welding Machine incorporates reinforced bearing piston technology, ensuring high durability and strong welding performance.
Adjustable Between Pistons
The machine features an adjustable distance between pistons, offering flexibility to accommodate different corner models and sizes.
| Code | PWT-KS90 |
| Product | BATHROOM CORNER SPOT WELDING MACHINE |
| Specifications | |
| Rated Power (%50DT) | 90 KVA |
| Adjustable Welding Stroke | 250-550mm (Adjustable) |
| Stroke | 50 mm |
| Piston Diameter | Ø63 mm x 6 (Adjustable) |
| Air Pressure | 2 / 8 Bar |
| Electrode Pressure Force | 1800-2500N |
| Cooling Water Inlet Temperature (min-max) | 15-30 °C |
| Cooling Water Inlet Flow Rate (min) | 8 – 10 lt / dkk(min) |
| Transformer Cooling Type | Air/Water |
| Dimensions (LWH) | 720X1000X1400mm |
| Machine Power Supply Voltage | 400V – 50/60Hz 2 Phase (Pole) |
| Delayed Network Fuse | 160 A |
